Description
For sorting object in industry optical sorting is very much convenient. Colour and size are the most important features for accurate classification and sorting of product which can be done by using some optical sensors. The colour sorting machine is mainly a device that can sense the different colour of the object and assert them into their respective location.
When object move to their respective location with the rotation of servo motors, sensors as the input devices will send signal to arduino where arduino as the controller will give command to the actuator to do action. The final result was quite satisfactory. The colour detecting sensors worked well and it was able to detect red or green object quite nicely and change the direction of servo on right and left side to sort the object in proper place. The system performed well as programmed and detects the object according to their colour.

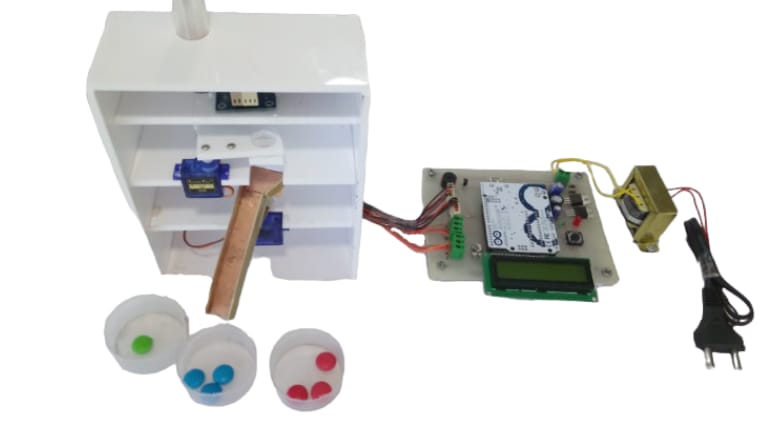

COLOUR BASED SORTING SYSTEM
NOTE = Colour based sorting system is the project of last year’s engineering projects, BE final year engineering project. This project is used for the BE last year’s mechanical and mechatronics department students. This project is a mechanical project. This project is degree mechanical department students.
Colour based sorting systemis the project of a good price for the engineering projects. It is a very comparative engineering project. It is a very good BE final year project. This project is asensor based project. It is a project for arduino based project.
The engineering projects give in the ELECTROSAL HI- TECH PVT.LTD. The best place for the degree final year engineering projects as well as for mechanical and mechatronics students’ final year for the golden opportunity.
Colour based sorting system is an easy project and idea for the mechanical degree base students and 100% output is done.
HIGHLIGHTS
- For sorting object in industry optical sorting is very much convenient.
- The colour sorting machine is mainly a device that can sense the different colour of the object and assert them into their respective location.
- When object move to their respective location with the rotation of servo motors
- Colour and size are the most important features for accurate classification and sorting of product which can be done by using some optical sensors.
- The system performed well as programmed and detects the object according to their colour. 5
BLOCK DIAGRAM
HARDWARE REQUIREMENTS
- Arduino UNO Board
- LCD Display
- Servo Motor
- Transformer
- Colour sensor
SOFTWARE REQUIREMENTS
- Arduino software
- Eagle
- proteus
