Description
In this proposed system, we are monitoring the patient’s heartbeat by using arduino board & heartbeat sensors. A technological innovation in the field of medical science has played a vital role in disease prevention and diagnostic. Heartbeat is an important health parameter that is related to the human cardiovascular system.

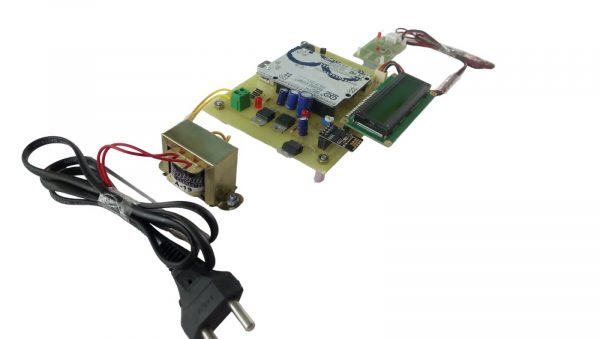

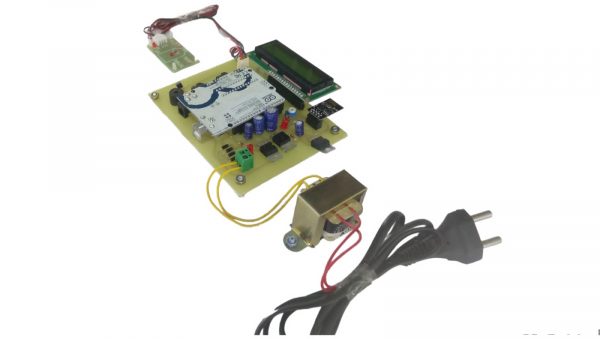

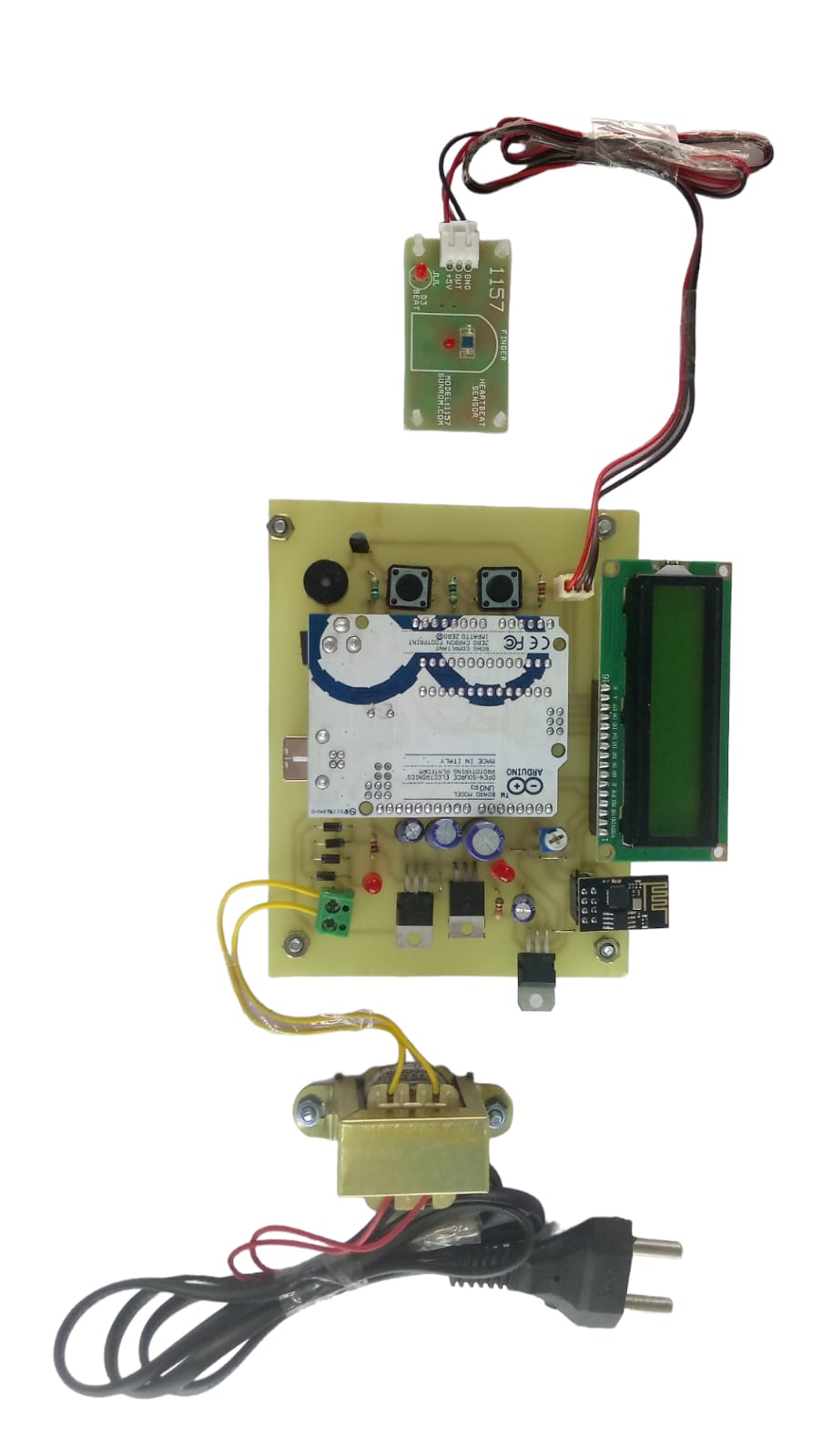

In this project, we are using arduino UNO as the main part of this project, heartbeat sensor, LCD display, Wi-Fi module and voltage regulator circuitry. One such advancement is heartbeat monitoring system that the Fluctuation of blood can be detected through a heartbeat sensing mechanism placed around the fingertip. The signal can be sent to Arduino and then processed with the help of serial port communication. The pulse can be felt from those areas where the artery is close to the skin. This project describes a technique of measuring the heart rate through a fingertip and show the heart beat on LCD and display the results, as well as globally over Thingspeak site.
Note
Heart beat monitoring system over iot is the project of last year’s engineering project, BE final year engineering project. This project is used for BE last year electronics core electronics, department students is used. This project is sensor based project
Heart beat monitoring system over iot .it is a very comparative engineering project. It is a very good BE electronics ,core electronics final year and diploma final year electronics based project.it is project for IOT based project idea for the electronics core electronics projects is an arduino based project.
The engineering projects give in the ELECTROSAL HI- TECH PVT.LTD. The best place for the degree and diploma final year engineering projects as well as for electronics core electronics final year for the golden opportunity. This project is arduino based project
Heart beat monitoring system over iot is an easy project and idea for the electronics, core electronics , degree and diploma base students & 100% output is done.
HIGHLIGHTS
- In this proposed system, we are monitoring the patient’s heartbeat by using arduino board & heartbeat sensors.
- Heartbeat is an important health parameter that is related to the human cardiovascular system.
- One such advancement is heartbeat monitoring system that the Fluctuation of blood can be detected through a heartbeat sensing mechanism placed around the fingertip.
- This project describes a technique of measuring the heart rate through a fingertip and show the heart beat on LCD and display the results, as well as globally over Thingspeak site.
BLOCK DIAGRAM
HARDWARE REQUIREMENTS
- Arduino UNO
- Heartbeat Sensor
- LCD display
- Transformer
- Wi-Fi module
- Bridge rectifier
- Regulator
- Switch
SOFTWARE REQUIREMENTS
- Arduino
- Eagle
- proteus
