Description
Objective :- Objective of this project is to develop structure where parts manufactured in manufacturing plant are segregated based on the height without using electronics structure.
Abstract :- In this project we are going to separate or segregate parts of different height. This project consists of two major sections 1. Conveyor belt which carries material from one to other place.2. Segregation mechanism.
Conveyor belt carries parts of different carries from one to other point.
Segregating mechanism separates maximum height part into. Next to these parts height job will be segregated innext cycled. And the last one will move directly and fallinto tray.

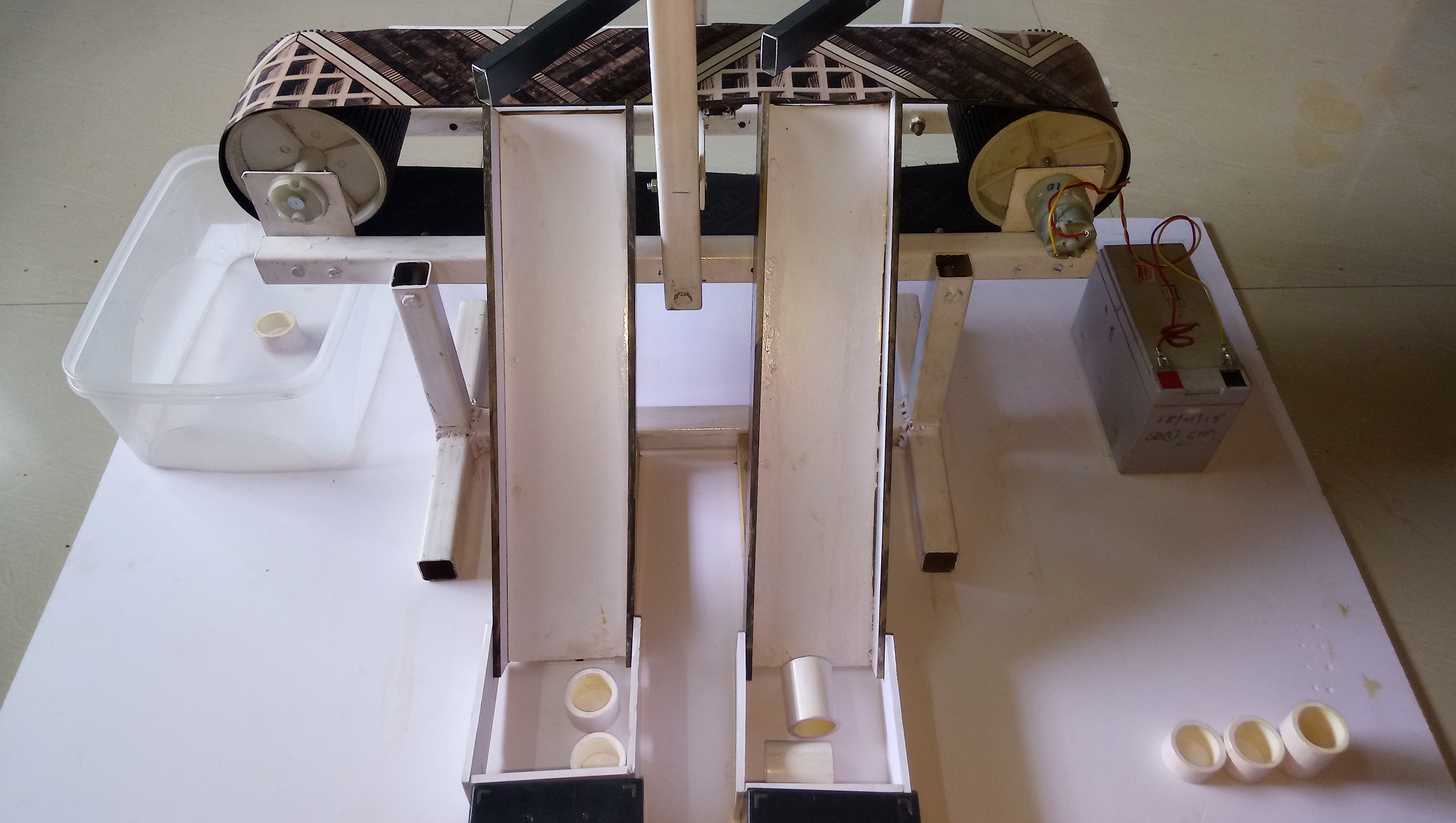

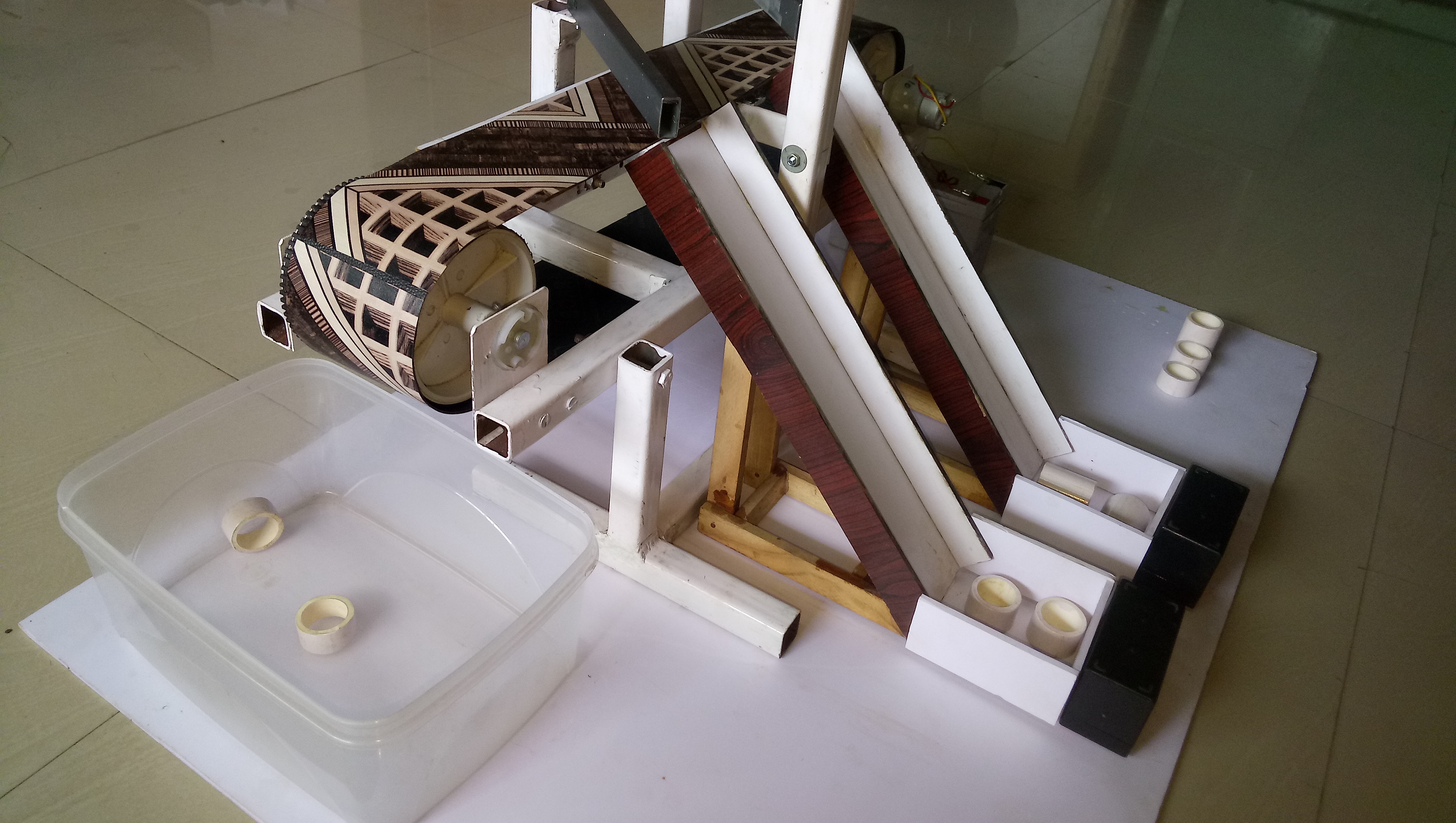

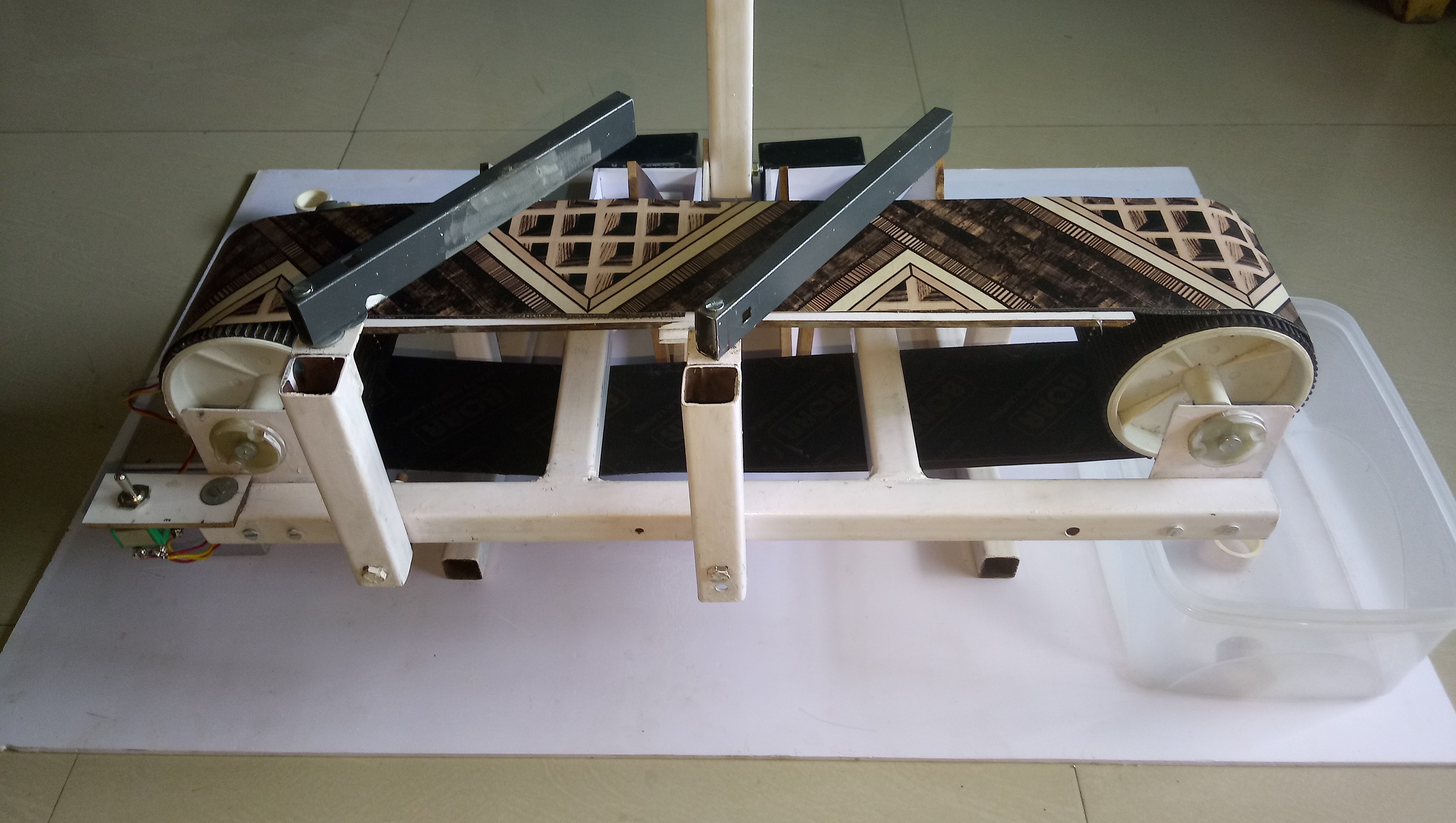

Working Principle :– Here we have used basic principle where we have two stopper mounted at different height. When part goes on conveyor as per its heightit gets stucked in to stopper. Lowerheight job will fall in to tray mounted at end middle ladle.
And higherheight job will settle down in first tray
HIGHLIGHTS
- No need of electronic sensor
- Less initial cost
- Stopper height can be adjusted
BLOCK DIAGRAM
HARDWARE REQUIREMENTS
- 12V DC MOTOR
- Conveyor Belt
- Stopper
- Slide
- Battery
SOFTWARE REQUIREMENTS
- Software List 1
- Software List 2
