LPG leakage indication over GSM using Arduino

Code 158 LPG leakage indication over GSM using Arduino

4.00 out of 5
(3 customer reviews)

8,500.00 7,200.00

Ready-made Project

If You Are Short On Time
8,500.00 7,200.00
Add to cart - OR - See more options

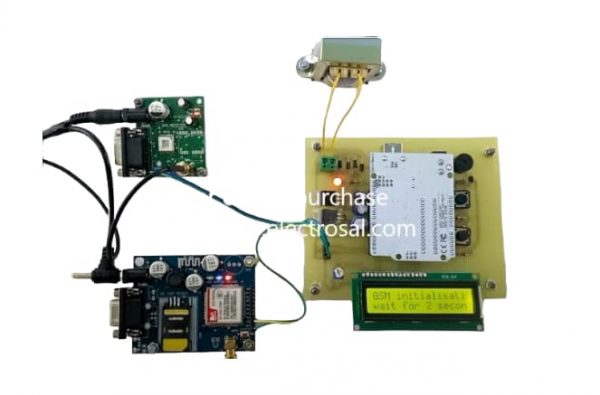

Arduino based LPG Leakage detector with SMS indication using GSM modem project detects the LPG gas leakage. If the LPG gas level crosses the threshold level then it sends SMS to the user using the GSM modem. Also, the LPG detector system turns on the buzzer to indicate the person nearby to the system. And at the same time Relay is turned on.

Kits DescriptionPrice
Ready-made Project + DIY Project Kit
If You Are An Enthusiast
Ready-made project kit, One more extra bare PCB solderable components for extra PCB, All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, and One year warranty. 10,000.00 8,500.00
Ready-made Project
If You Are Short On Time
Ready-made project kit - All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, One year warranty. 8,500.00 7,200.00
DIY Project Kit
For Institutions
DIY KIT - Bare PCB, solderable components, external all components, All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, 7,500.00 6,100.00
For Documentation
(Report, PPT, Circuit diagram, Program code, Explanatory Video). Audio and video call support. 3,000.00 2,000.00
For Simulation
Proteus Simulation file, Program Coad, Hex File, Explanatory Video, Google Meet Or Zoom Meet Support. 4,000.00 3,000.00

Description

Arduino based LPG Leakage detector with SMS indication using GSM modem project detects the LPG gas leakage. If the LPG gas level crosses the threshold level then it sends SMS to the user using the GSM modem. Also, the LPG detector system turns on the buzzer to indicate the person nearby to the system. And at the same time Relay is turned on. Arduino has inbuilt Analog to Digital converter so we need not connect any external ADC IC. We have connected the LPG sensor directly to the analog input pins of the Arduino Uno board.

This project proves really helpful in cases when there is nobody in the house that has an LPG gas cylinder in it. Due to some negligence, there might be LPG gas leakage which can lead to measuring accidents. GSM based Arduino LPG detector can avoid such situations by sending an alert SMS to the owner and by turning on Buzzer/Siren at the same time.

HIGHLIGHTS

  • MQ2 Sensor Senses the Gas Leakage and that time both the relay and buzzer will be ON
  • When Relay is ON then Fan will be ON. and that time Arduino Sends command to the GSM for SMS Sending.
  • GSM Sends the message to Adroid Phone as “GAS LEAKAGE”.

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Arduino
  • MQ2 Sensor
  • LCD Display
  • Fan
  • GSM Module
  • Relay
  • Buzzer

SOFTWARE REQUIREMENTS

  • Arduino
  • Eagle
  • proteus
