Description

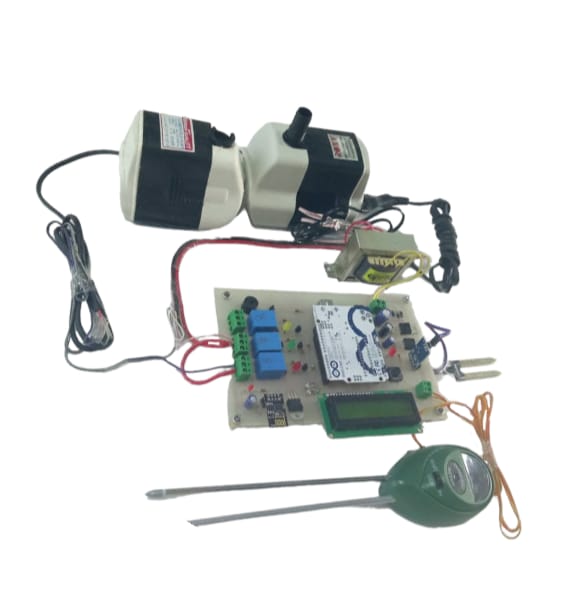

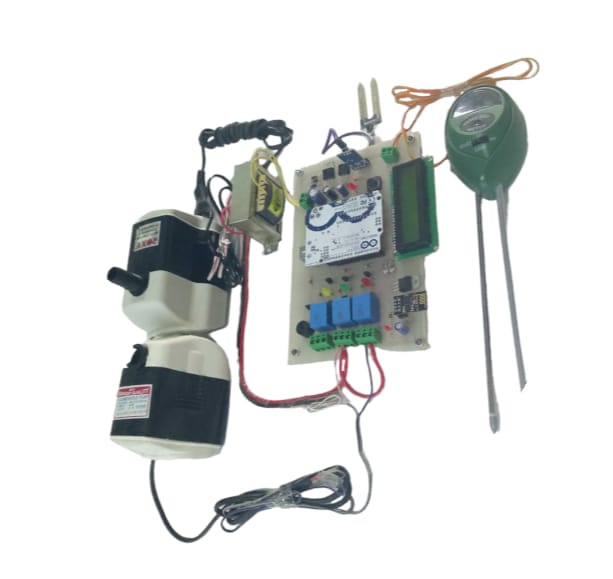

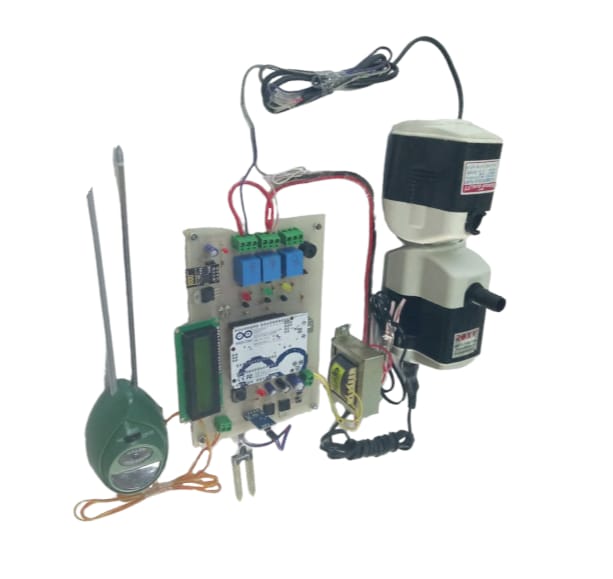

In this processed system we are discussed about the ph control system using arduino. In this project we are used arduino board, LCD display, PH sensor, soil moisture sensor, power supply, relays and 3pumps. Also we are using ESP8266 module and it is required 3.3v supply. In this project we are taken 3 containers. So when ph is less than 7 then the solution is acidic. When the solution is normal then it is equal to 7 so it is ready for irrigation. And when the ph of solution is more than 7 then it is called alkaline solution.
When the solution is acidic (<7) then the 1st relay gets ON for make the solution in normal condition. And when it gets normal then this normal solution is ready for irrigation when soil is dry and it will turn ON the 3rd relay and supplies normal water for irrigation purpose. When the solution is alkaline (>7) then the 2nd relay gets ON for make the solution in normal condition. And when it gets normal then this normal solution is ready for irrigation when soil is dry and it will turn ON the 3rd relay and supplies normal water for irrigation purpose. Each and every msg will be displayed on LCD.
Soil ph. controlled irrigation system based on iot. Is the project of last year’s engineering project, BE final year engineering project. This project is used for BE last year electronics department students.
Soil ph controlled irrigation system based on iot is the project of a good Price for the electronics engineering project .it is a very comparative engineering project. It is a very good BE final year and diploma project.it is project for arduino based project idea for the electronics projects is an IOT project.
The engineering projects give in the ELECTROSAL HI- TECH PVT.LTD. The best place for the degree and diploma final year engineering projects as well as for electronics students’ final year for the golden opportunity.
Soil ph controlled irrigation system based on iot is an easy project and idea for the electronics degree and diploma base students & 100% output is done.
HIGHLIGHTS
- In this processed system we are discussed about the ph control system using arduino.
- When ph is less than 7 then the solution is acidic.
- When the solution is normal then it is equal to 7 so it is ready for irrigation.
- And when the ph of solution is more than 7 then it is called alkaline solution.
- In this project we are used arduino board, LCD display, PH sensor, soil moisture sensor, power supply, relays and 3pumps.
BLOCK DIAGRAM
HARDWARE REQUIREMENTS
- Arduino UNO3
- Soil moisture sensor
- PH sensor
- LCD display
- Pumps
- ESP 8266 WIFI module
- Relay
- Transformer
- Rectifier
- Regulator
SOFTWARE REQUIREMENTS
- Arduino
- Eagle
- Proteus
