Description
The main intention of this project is to develop an induction motor speed control system which is helpful to control the speed of an induction motor using microcontroller

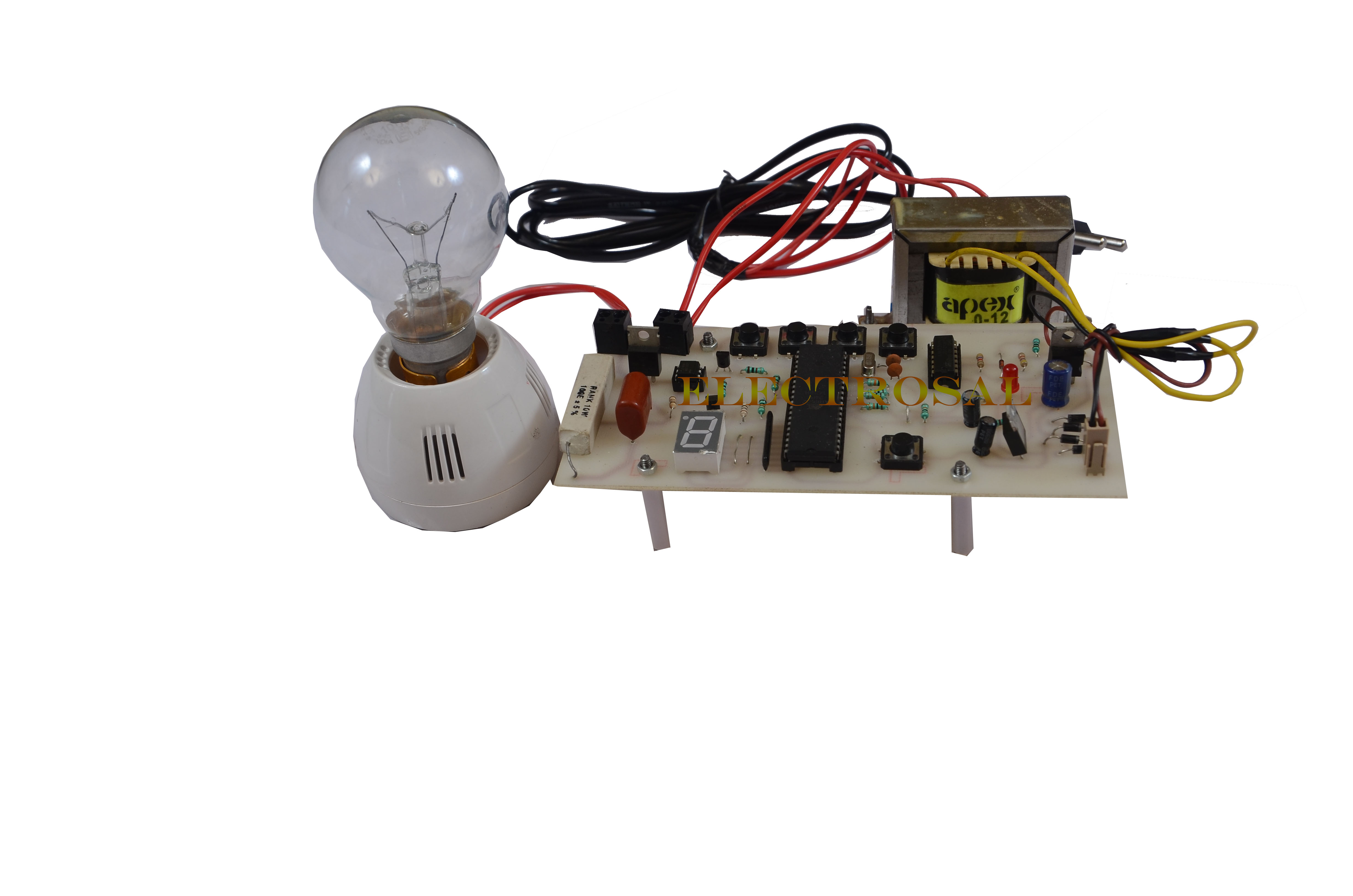

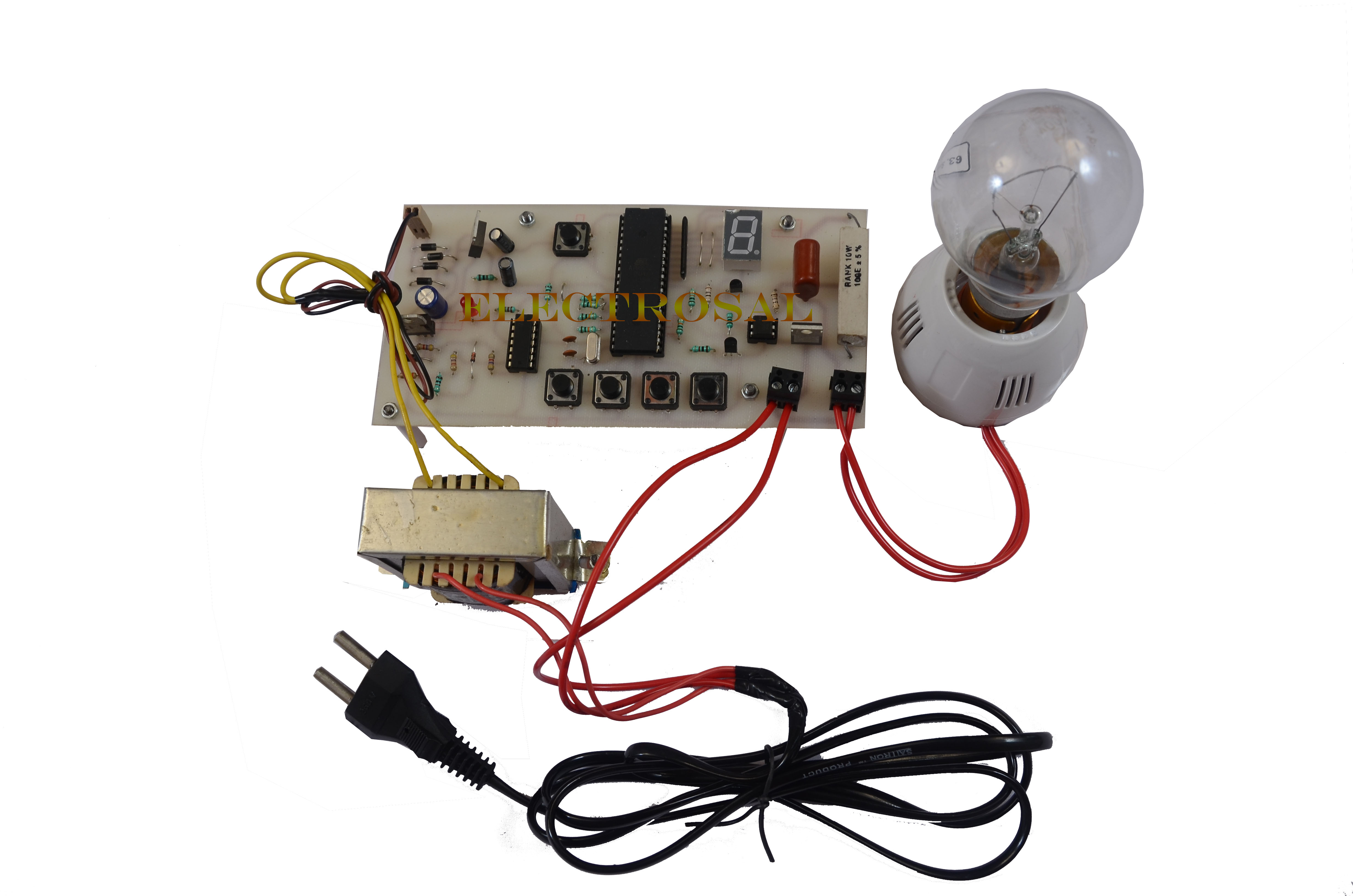

In this project, the zero-crossing point of the voltage waveform is detected by a comparator whose output is then fed to the microcontroller. Then, it provides the required delayed triggering pulses to a pair of TRIAC through an opto-isolator connected to this circuit. Finally, power is applied to the load through the TRIAC. Four push-button switches are interfaced to the controller for increasing and decreasing the AC power to the load. In this project, a lamp is used in the place of induction motor demonstration purposes. The motor speed variation depends on the power reduction.
HIGHLIGHTS
- Microcontroller is used
- The zero-crossing detector
- upto-coupler is used to isolate
- Power is applied through the TRAIC
BLOCK DIAGRAM
HARDWARE REQUIREMENTS
- 8051Microcontroller
- 339 comparator
- upto coupler
- seven segment display
- switches
- Transformer
- Induction motor
SOFTWARE REQUIREMENTS
- keil
- Eagle
