Description

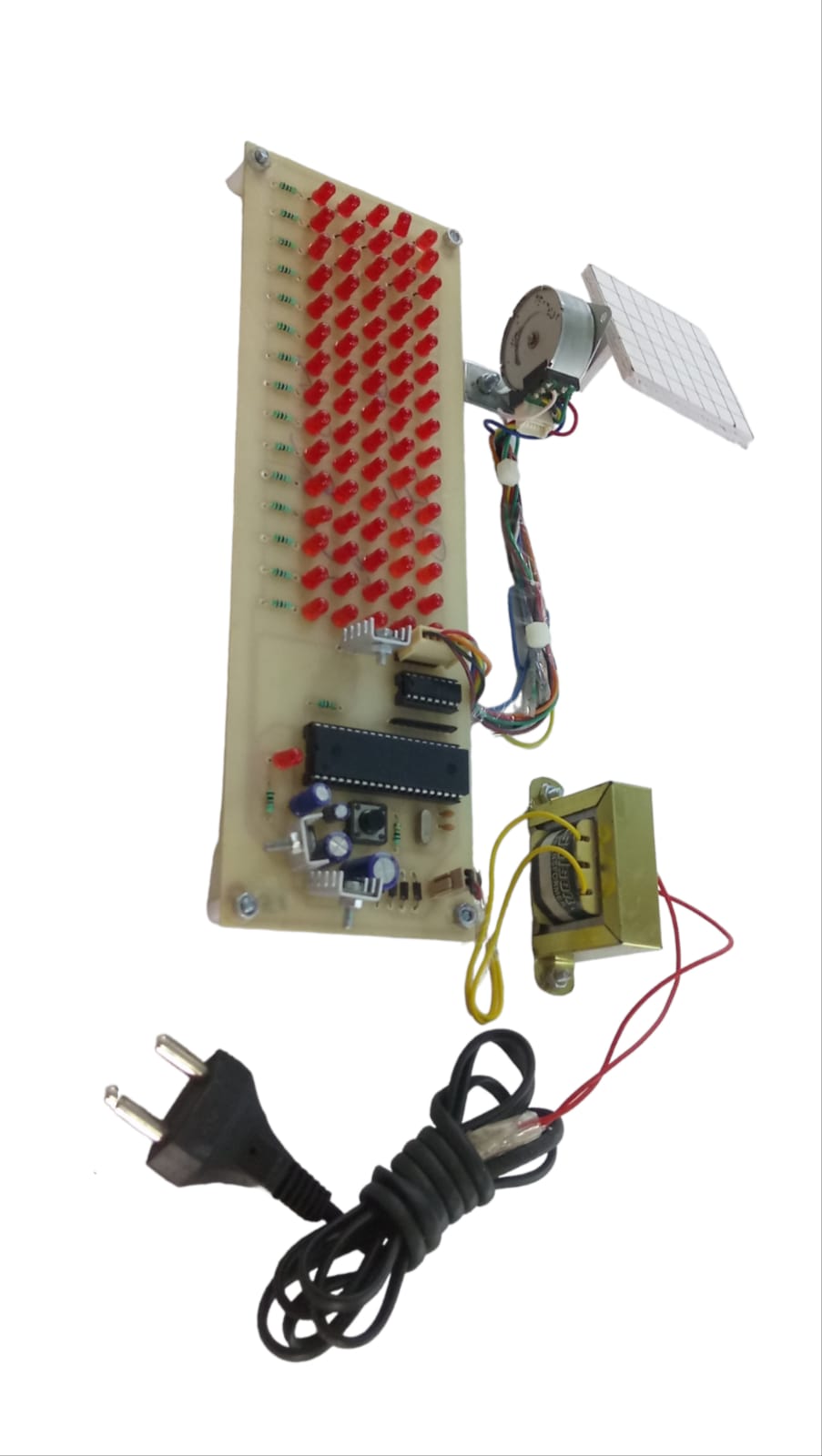

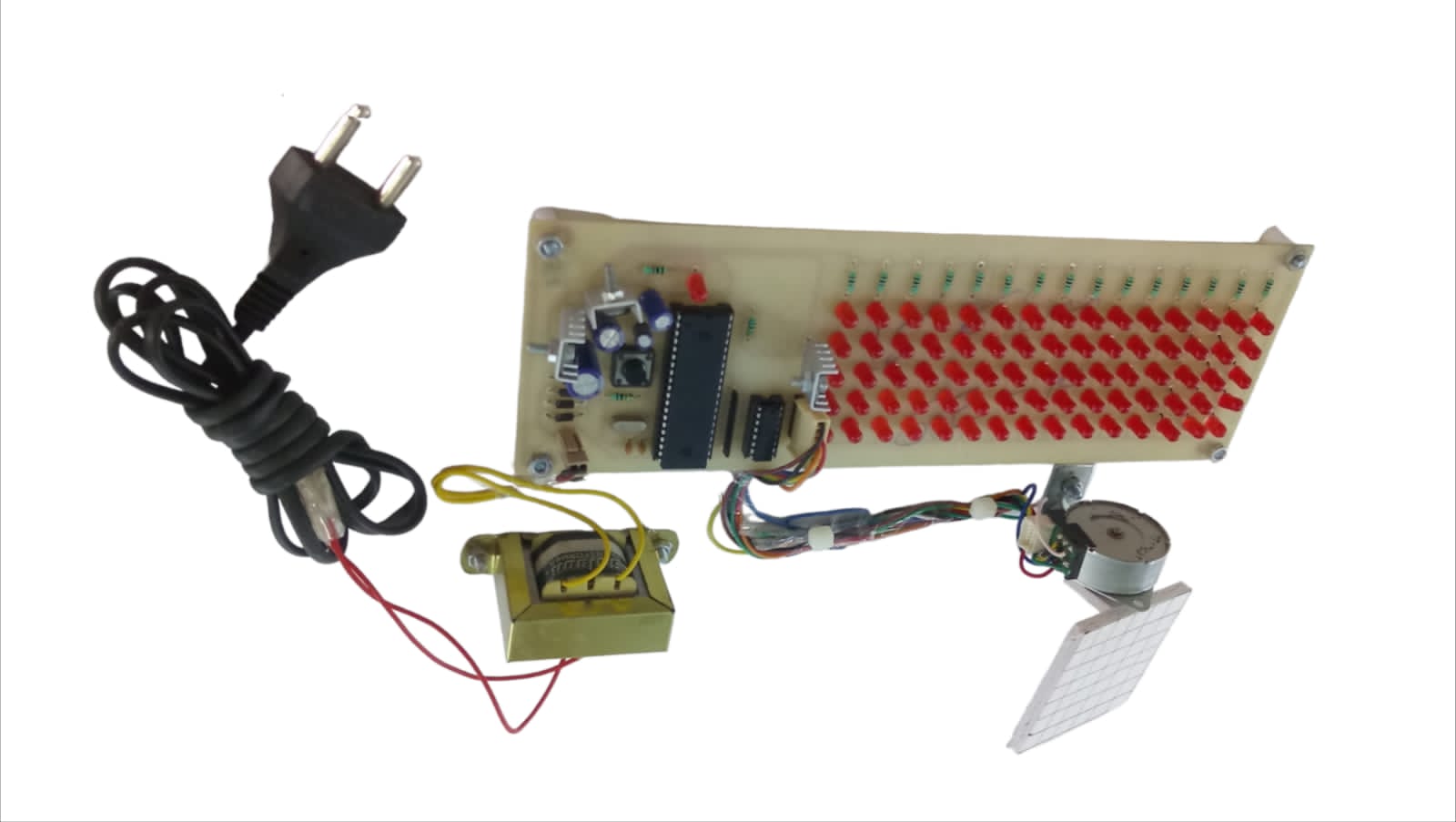

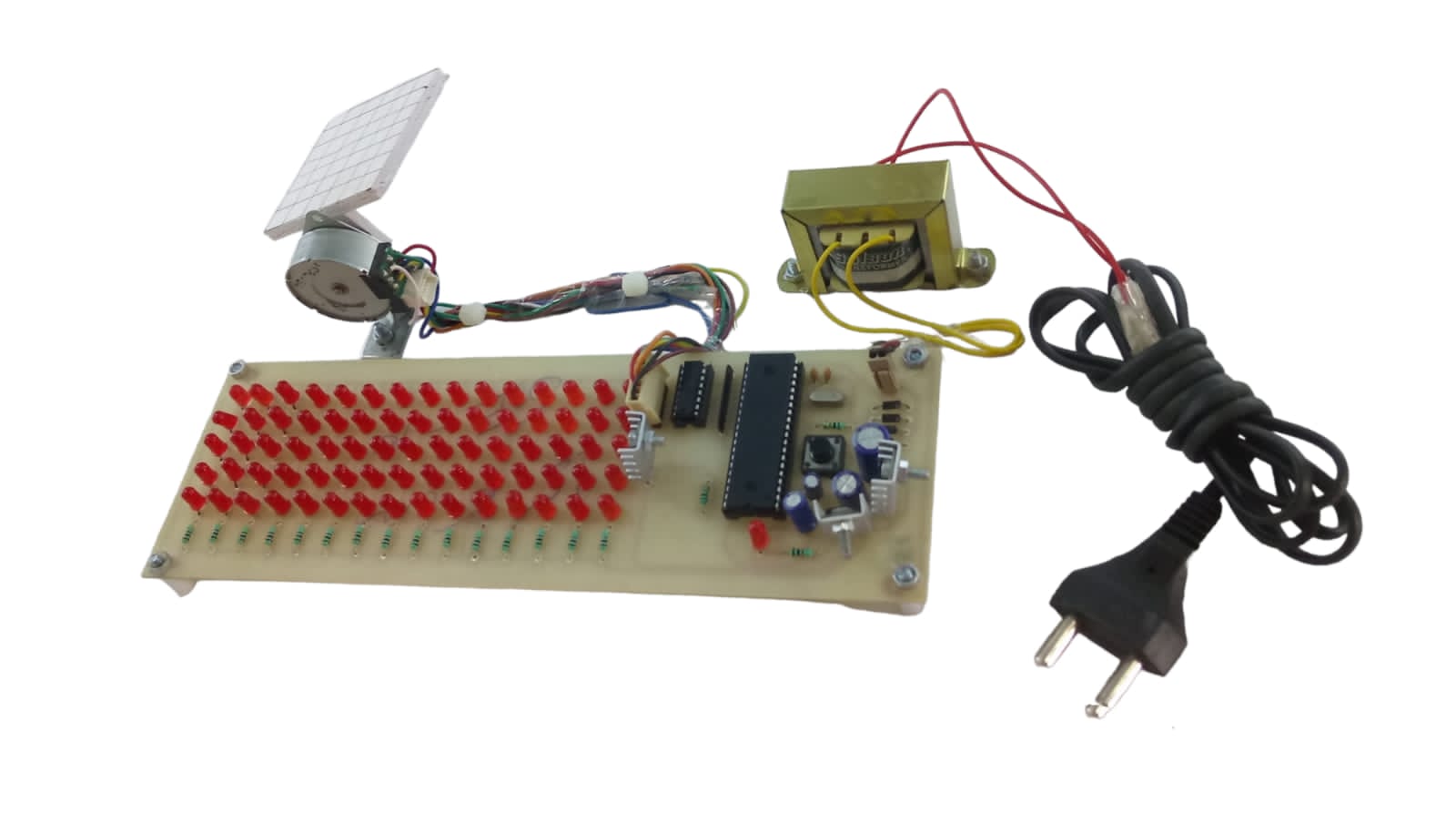

This project employs a solar panel mounted to a time-programmed stepper motor to track the sun so that maximum sun light is made incident upon the panel at any given time of the day. This is better compared to the light-sensing method that may not be accurate always – for example, during cloudy days.
With the impending scarcity of non-renewable resources, people are considering to use alternate sources of energy. Barring all the other available resources, the solar energy is the most abundant and it is comparatively easy to convert into electrical energy. The usage of solar panel to convert Sun energy into electrical energy is very popular, but due to the transition of the sun from east to west, the fixed solar panel may not be able to generate optimum energy. The proposed system solves this problem by an arrangement for the solar panel to track the Sun.
This tracking movement is achieved by coupling a stepper motor to the solar panel such that the panel maintains its face always perpendicular to the sun to generate maximum energy. This is achieved by using a programmed microcontroller to deliver stepped pulses in periodical time intervals for 12 hours for the stepper motor to rotate the mounted panel in one direction and then return to the start point for next day light as desired. The microcontroller used in this project is from the 8051 families. The Stepper motor is driven by an interfacing IC as the controller is not capable of handling the power requirements of the stepper motor. This particular project is provided with a dummy solar panel, which can be used for demonstration purposes only.
Red Light Emitting Diodes (LED) replaces HID lamps in street lighting system to include dimming feature. A microcontroller of the 8051 families is used to control the intensity by developing pulse width modulated signals that drive the TIP-122 to switch the LEDs according to achieve the desired operation.
Furthermore, this project can be enhanced by using an RTC (Real Time Clock) to follow the sun. This helps in maintaining the required position of the panel even if the power is interrupted for some time.
HIGHLIGHTS
- This project employs a solar panel mounted to a time-programmed stepper motor to track the sun so that maximum sun light is made incident upon the panel at any given time of the day.
- This is better compared to the light-sensing method that may not be accurate always – for example, during cloudy days.
- Barring all the other available resources, the solar energy is the most abundant and it is comparatively easy to convert into electrical energy.
- This tracking movement is achieved by coupling a stepper motor to the solar panel such that the panel maintains its face always perpendicular to the sun to generate maximum energy.
BLOCK DIAGRAM
HARDWARE REQUIREMENTS
- 8051 Microcontroller
- Solar panel
- Led panel
- LCD display
- Stepper motor
SOFTWARE REQUIREMENTS
- Arduino
- Eagle
