Description

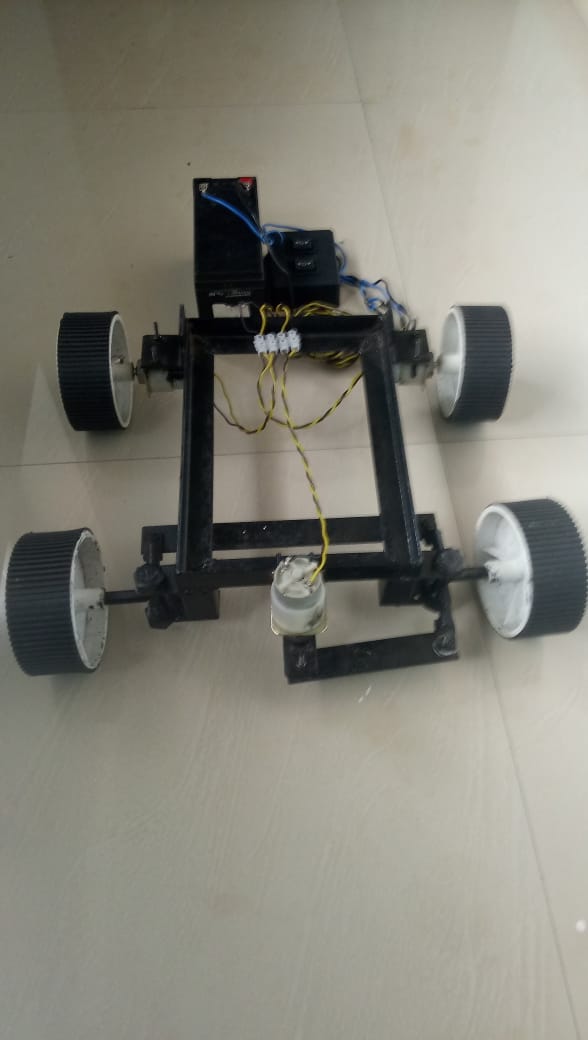

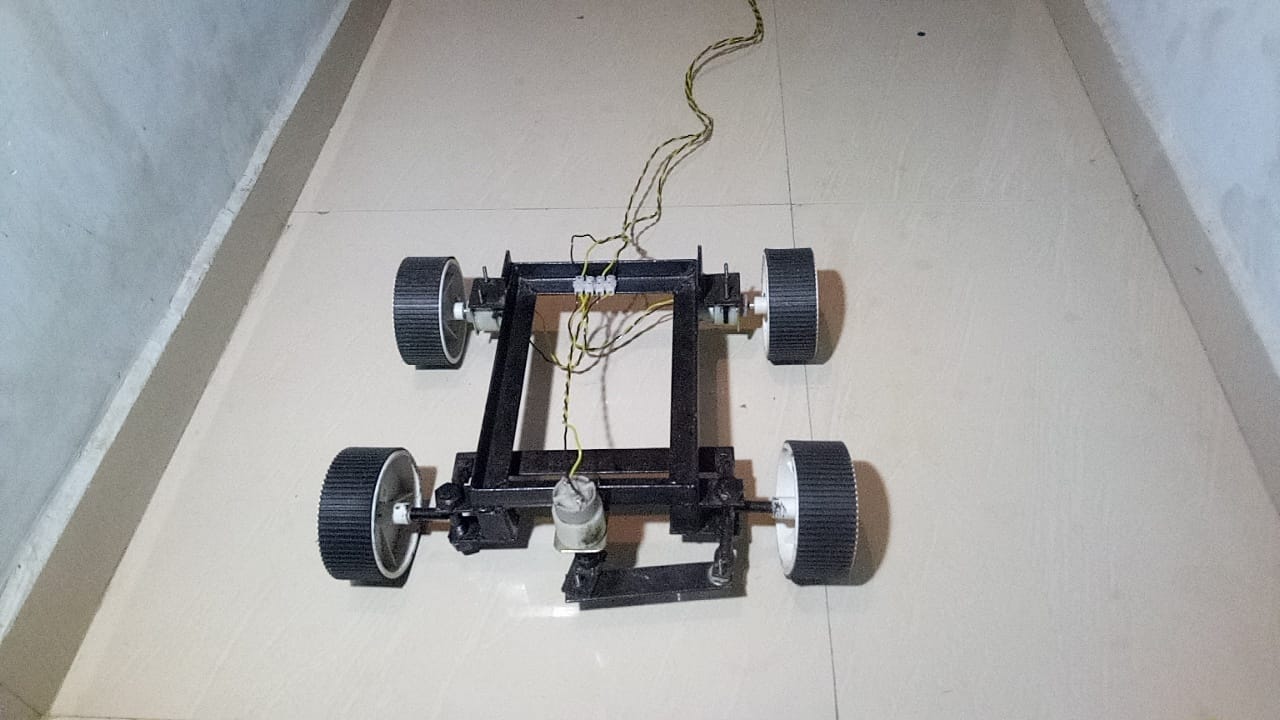

There are many types o steering mechanisms used in automotive vehicles. In this project we have made prototype of Ackerman steering mechanism. When a vehicle is turning, the inner front wheel needs to turn at a different angle to the outer because they are turning on different radii. The Ackermann steering mechanism is a geometric arrangement of linkages in the steering of a vehicle designed to turn the inner and outer wheels at the appropriate angles.
HIGHLIGHTS
- This Mechanism is avoids extra slipping of wheels
- Easy to Maintain
- Easy to Manufacture
BLOCK DIAGRAM
HARDWARE REQUIREMENTS
- 12v DC Motor
- Mechanical Linkages
- Battery
- Remote
- Wheels
