Description
The Electric Power System is divided into many different sections. One of which is the transmission system, where power is transmitted from generating stations and substations via transmission lines into consumers. Both methods could encounter various types of malfunctions is usually referred to as a “Fault”. Fault is simply defined as a number of undesirable but unavoidable incidents can temporarily disturb the stable condition of the power system that occurs when the insulation of the system fails at any point. Moreover, if a conducting object comes in contact with a bare power conductor, a short circuit, or fault, is said to have occurred. The causes of faults are many, they include lighting, wind damage, trees falling across transmission lines, vehicles or aircraft colliding with the transmission towers or poles, birds shorting lines or vandalism. In this study, the causes and effects of faults in the overhead transmission lines were the focus of the research. Some of the many causes of faults and some detection methods will be discussed. These faults lead to substantial damage to the power system equipment. In India it is common, the faults might be LG (Line to Ground), LL (Line to Line), 3L (Three lines) in the supply systems and these faults in three phase supply system can affect the power system.
Note

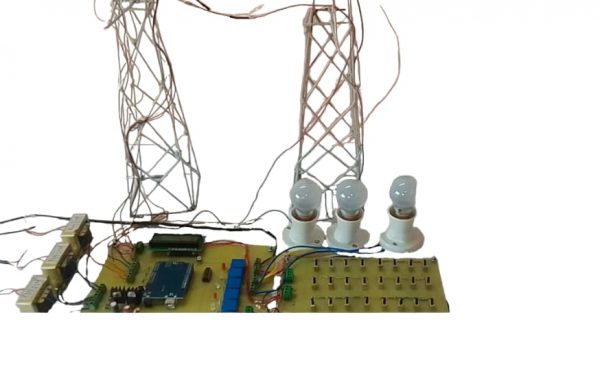

Three phase transmission line fault detection the project of a good price for the engineering projects. It is a very comparative engineering project. It is a very good BE final year project. It is a project for core electrical based project. This project is sensor based project.
The engineering projects give in the ELECTROSAL HI- TECH PVT.LTD. The best place for the degree final year engineering projects as well as for core Electronics, Electrical and core electrical student’s final year for the golden opportunity.
Three phase transmission line fault detection it is easy project and idea for the core electronics and electrical and core electrical base students and 100% output is done.
HIGHLIGHTS
- Design is very reliable and effective.
- The main objective of this prototype model human efforts decreased.
- And damage the electrical equipment.
- To ensure stability and reliability of power system is boost system is stronger and also strong the economic growth.
BLOCK DIAGRAM
HARDWARE REQUIREMENTS
- Transformer
- Rectifier
- Regulator
- Arduino
- Flame sensor
- Relay driver IC ULN 20003
- Relay
- Fault switch
SOFTWARE REQUIREMENTS
- Eagle
- Proteus
- Arduino id
