Description

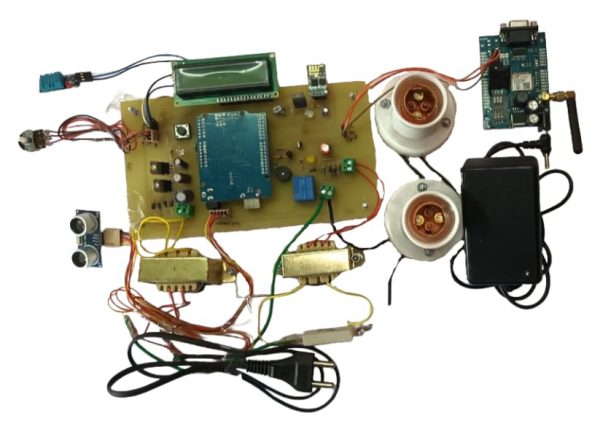

This project is about design and implementation of a mobile embedded system to monitor and record key parameters of a distribution transformer like load currents, Voltage and ambient temperature.
The idea of on-line monitoring system integrates a Global Service Mobile (GSM) Modem, with a standalone Arduino and different sensors. The obtained parameters are processed and recorded in the system memory. If any abnormality or an emergency situation occurs the system sends SMS (short message service) messages to the mobile phones containing information about the abnormality according to some predefined instructions programmed in the Arduino.
This mobile system will help the transformers to operate smoothly and identify problems before any catastrophic failure. A powerful GSM networking is designed to send data from a network to other network for proper corrective action at the earliest.
Any change in parameters of transmission is sensed to protect the entire transmission and distribution. The performance of prototype model developed is tested at laboratory for monitoring various parameters like transformer Over voltage and Under Voltage, Over current and Under current, Over temperature, Less Oil, etc.
NOTE =Transformer health monitoring over IOT and GSM is the project of last year’s engineering projects, BE final year engineering project. This project is used for the BE last year’s core electronics department students. This project is used for the electrical department students. This project isused for the core electrical department students.
Transformer health monitoring over IOT and GSM is the project of a good price for the engineering projects. It is a very comparative engineering project. It is a very good BE final year project. It is a project forarduino based project. This project is sensors based project. This project is IOT and GSM based projects. This project is ultrasonic sensor based project.
The engineering projects give in the ELECTROSAL HI- TECH PVT.LTD. The best place for the degree final year engineering projects as well as for core electronics students’ and electrical final year for the golden opportunity.
Transformer health monitoring over IOT and GSMis an easy project and idea for the core electronics and electrical base students and 100% output is done.
HIGHLIGHTS
- To design a protective circuit for transformer based on programmable Arduino to monitor transformer temperature, voltage and current by using sensors.
- To design an communication system using Arduino controlled GSM module to transfer the over voltage, over current and over temperature fault values to mobile devices.
- To all the sensors value is uploaded on the iot page
BLOCK DIAGRAM
HARDWARE REQUIREMENTS
- Transformer
- Rectifier
- regulator
- Arduino
- LCD
- GSM
- Buzzer
- Load
- LM35
- Pot
- Ultrasonic Sensor
- Relay
- IOT
- Diode
- Resistor
- Capacitor
- Current sensor circuit
SOFTWARE REQUIREMENTS
- Arduino IDE
- Eagle
- protious
