Description

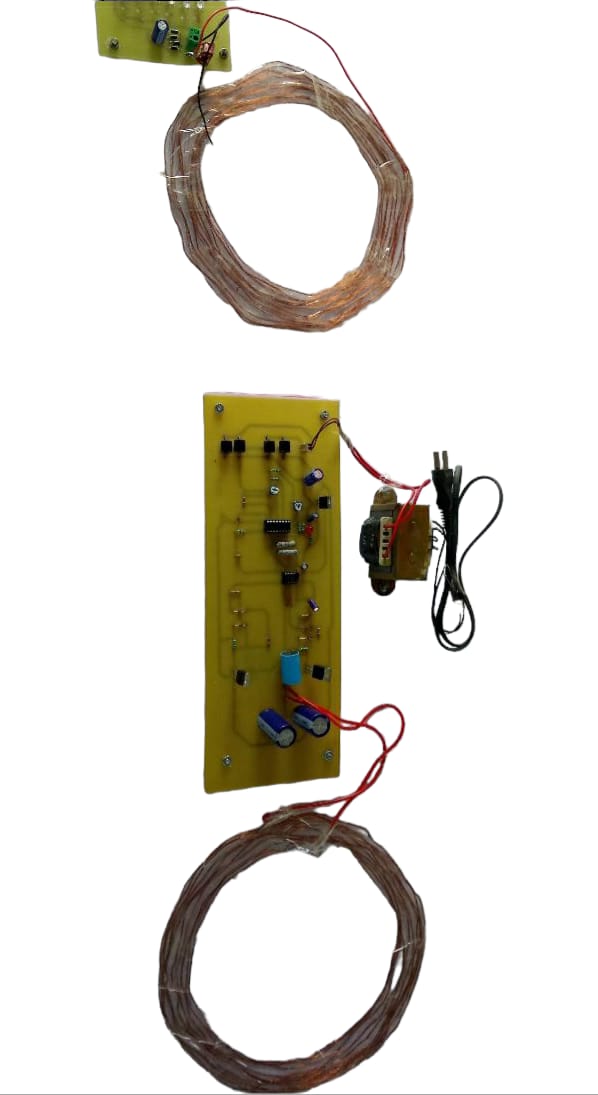

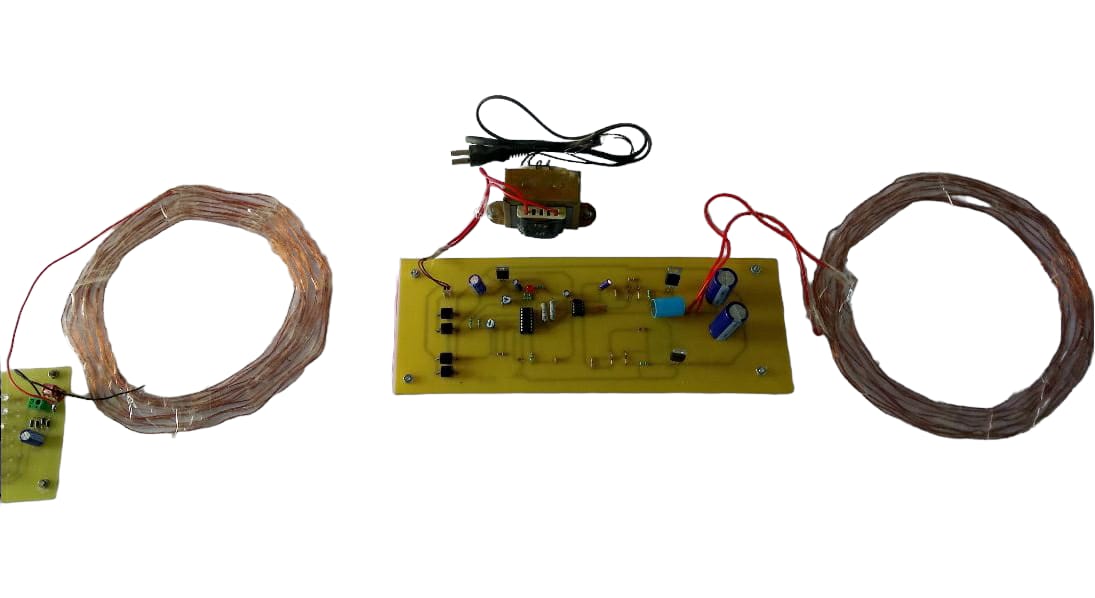

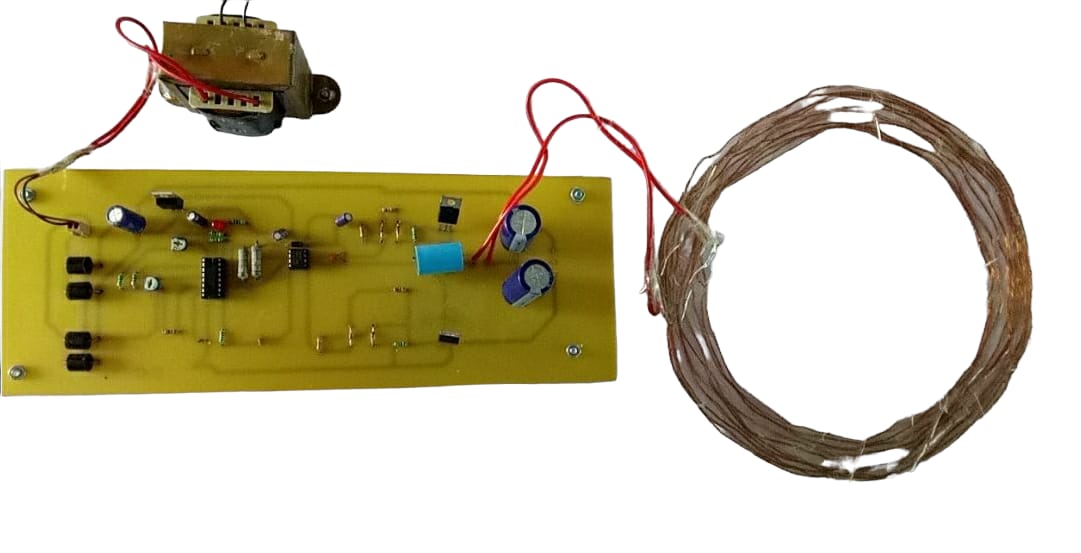

The main objective of this project is to develop a concept of wireless power transfer for several applications such as wireless powered electric vehicles in stores, airports, departmental stores, etc. It can also charge a rechargeable battery or a cell phone wirelessly suitably modified for the purpose. AC 230V,50 Hz mains is stepped down to low voltage ac by conventional 50 Hz iron cored transformer which is then rectified by a bridge rectifier to develop around 14 volt DC. This DC is again made to ac by a PWM inverter using half-bridge concept comprising of 2 MOSFETs and 2 capacitors being switched at 40 kHz which is then fed to a resonating high-frequency coil acting as primary of an air-core transformer. Another matching resonating coil formed as secondary drives a lamp load of 10 watts spaced at an air distance of 20 CMs. The overall efficiency of the power transfer, in this case, is more than 90% for perfectly coupled and matched series resonators. However, practically resonators with a Q of 1,000 should be able to send power over a distance 9 times the radius of the devices with an efficiency of 10%. The secondary coil develops a voltage of 40 kHz at 12volt while it is kept spaced from the primary coil where the air is used as the core. The output of the secondary can also be given to a high-frequency bridge rectifier that can deliver DC which could then be regulated to maintain a constant voltage to a DC motor or current to feed to a rechargeable battery or a cell phone. However, the overall efficiency of the power transfer shall be less than 50% for all such weakly coupled series resonators.
NOTE = Wireless power transformer is project of the last year engineering project, BE final year engineering project. This project is used for the BE last year department students. This project is used for the BE last year core electronics department student. This project is used BE last year electrical department students. This project is used for the BE last year power electronics department students.
Wireless power transformer is the project of good price for the engineering projects. It is vary comparative engineering project. It is project for mosfet drive based.
The engineering projects give in the ELECTROSAL HI- TECH PVT.LTD. The best place for the degree and diploma final year engineering projects as well as for electrical and power electronics students’ final year for the golden opportunity.
Wireless power transformer is easy project and idea for the core electrical ,electrical and power electronics, core electronics degree and diploma base student & 100% output is done.
HIGHLIGHTS
- This project-based on wireless power transfer
- Reduces energy loss
- Power transfer more efficiently than through wires
- Doesn’t required messy cords
BLOCK DIAGRAM
HARDWARE REQUIREMENTS
- MOSFET
- Primary coil
- Secondary coil
- Power supply
SOFTWARE REQUIREMENTS
- Proteus
- Eagle
